Tier 1 — Gateway
Gateways
The top of the stack. A gateway talks down to the EMOG mesh and up to your MQTT broker — cloud-hosted or on-premise. Choose the connectivity that matches your site.

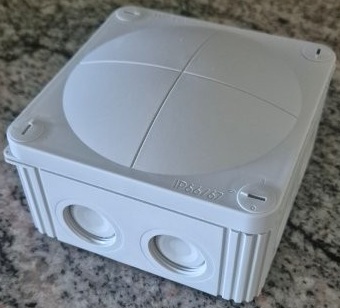

EMOG_MQTT_LTE_Gateway
MQTT LTE Gateway
Communicates with EMOG comms modules directly, or via extender nodes, and publishes readings to the MQTT broker your utility chooses. Cellular connectivity means no dependency on site internet or Wi-Fi.
USD 50–90 / unit, qty-dependent
Specification
| Variants | Standard, or with WMBUS (868 MHz receiver for Kamstrup water meters) |
| Enclosure | WISKA 607 junction box, IP66/IP67, 110 × 110 × 66 mm |
| Capacity | Up to 100 meters |
| Certification | ICASA — pending |
EMOG_MQTT_WiFi_Gateway
MQTT Wi-Fi Gateway
Communicates with EMOG comms modules directly, or via extender nodes, and publishes readings to the MQTT broker your utility chooses. Can additionally report to a Home Assistant broker.
USD 40–60 / unit, qty-dependent
Specification
| Variants | Standard, or with WMBUS (868 MHz receiver for Kamstrup water meters) |
| Enclosure | WISKA 607 junction box, IP66/IP67, 110 × 110 × 66 mm |
| Capacity | Up to 100 meters |
| Integrations | Any standard MQTT broker, plus Home Assistant |
| Certification | ICASA — pending |
EMOG_MQTT_Ethernet_Gateway
MQTT Ethernet Gateway
Communicates with EMOG comms modules directly, or via extender nodes, and publishes readings to the MQTT broker your utility chooses. A wired connection for sites with existing network infrastructure.
USD 50–80 / unit, qty-dependent
Specification
| Variants | Standard, or with WMBUS (868 MHz receiver for Kamstrup water meters) |
| Enclosure | WISKA 607 junction box, IP66/IP67, 110 × 110 × 66 mm |
| Capacity | Up to 100 meters |
| Certification | ICASA — pending |
Add a 5V DIN rail power supply to any gateway or extender node order — mounts inside the distribution board while the unit itself installs externally. Ask for pricing when you request a quote.
Tier 2 — Mesh
Extender Nodes & Coordinator
A self-healing radio mesh that carries data between gateways and meter-level devices across a site — no cabling required between buildings.
EMOG_Extender_Node
Extender Node (without RS485)
Extends the radio mesh between gateways and comms modules, carrying data further across a site than a gateway alone can reach.
USD 35–60 / unit, qty-dependent
Specification
| Variants | Standard, or with WMBUS (868 MHz receiver for Kamstrup water meters) |
| Enclosure | WISKA 607 junction box, IP66/IP67, 110 × 110 × 66 mm |
| Certification | ICASA — pending |
EMOG_Extender_Node_RS485
Extender Node (with RS485)
Extends the radio mesh like the standard extender node, and adds an RS485 port for a direct connection to meters or Modbus devices with an RS485 interface — no separate comms module required.
USD 50–90 / unit, qty-dependent
Specification
| Interface | RS485, for a local bus of meters or Modbus devices |
| Enclosure | WISKA 607 junction box, IP66/IP67, 110 × 110 × 66 mm |
| Certification | ICASA — pending |
EMOG_Coordinator
Coordinator (for EMOG Keypads)
Sits in the radio mesh at a strategic point in the complex and relays messages between meters and tenant keypads. Add coordinators as needed to reach every keypad in the building.
USD 60–80 / unit, qty-dependent
Specification
| Capacity | Up to 32 keypads per coordinator, proximity-dependent |
| Enclosure | WISKA 607 junction box, IP66/IP67, 110 × 110 × 66 mm |
| Certification | ICASA — pending |
Tier 3 — Meter-level
Comms Modules & Keypad
Small, low-cost devices that attach directly to the meter, or give tenants a way to view credit and load tokens.
EMOG_Comms_Kamstrup
Comms Module — Kamstrup Omnipower
Plugs directly into the communication socket exposed when the Omnipower's terminal cover is opened — no separate enclosure or wiring.
USD 10–15 / unit, qty-dependent
Specification
| Form factor | Open PCB, approx. 20 × 30 mm, 8-pin header |
| Fits | Kamstrup Omnipower comms socket |
| Certification | ICASA — pending |
EMOG_Comms_Veryco
Comms Module — Veryco 1100
Four PCB pins slide directly into the Veryco 1100's screw terminals — a compact plastic-capped module with no external enclosure.
USD 10–15 / unit, qty-dependent
Specification
| Form factor | 4-pin PCB, 2.5 mm pin spacing, 25 × 30 mm plastic cap |
| Fits | Veryco 1100 (prepaid & smart meter variants), 4 screw terminals |
| Certification | ICASA — pending |

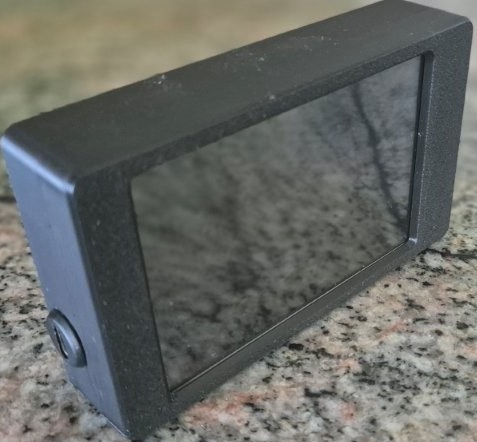

EMOG_Keypad
EMOG Keypad
A wall-mounted in-unit display, mapped to a specific Veryco meter. Shows the tenant's remaining credit and lets them load a new token without leaving the apartment.
USD 50–80 / unit, qty-dependent
Specification
| Enclosure | Plastic, 70 × 120 × 30 mm |
| Display | 4-inch TFT screen |
| Power | 5V via USB-C |
| Pairing | Mapped to one specific Veryco meter |
| Certification | ICASA — pending |
Other
Demand Management HES
A standalone product outside the three-tier stack, for utility complexes managing peak demand and on-site solar.
EMOG_DemandMgmt_HES
Demand Management HES
A small, single-complex Head-End System for demand-side management. Works with Kamstrup 3-phase CT meters on the bulk infeed and on solar installations to issue demand-reduction commands during peak periods, and to calculate solar's contribution during the peak half-hour.
Specification
| Metering inputs | Kamstrup 3-phase CT meters — bulk infeed and solar |
| Function | Peak demand management commands; solar contribution calculation at peak half-hour |
| Enclosure | WISKA 607 junction box, IP66/IP67, 110 × 110 × 66 mm |
| Certification | ICASA — pending |
